By Ken Grauer, MD

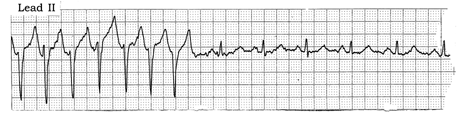

Figure: Rhythm strip recorded on telemetry from a
70-year-old woman
admitted to the hospital for episodes of "falling out."
The rhythm in the Figure was obtained from a 70-year-old woman who was admitted to the hospital with a history of "falling out" on several occasions during the week prior to admission. Her initial 12-lead ECG was unremarkable, and acute serum markers were negative for recent infarction. Telemetry monitoring was described as "unremarkable" except for the tracing shown in the Figure. This rhythm strip was interpreted as sinus rhythm with a brief run of "SVT." Your thoughts on the case?
Interpretation: It is difficult to determine from the history provided what may have occurred. The patient's description of "falling out" on several occasions during the week prior to admission could represent a variety of benign phenomena, or could reflect true syncope from a recurrent and serious cardiac arrhythmia. Potentially life-threatening arrhythmias may occur without associated acute infarction and on an infrequent, intermittent basis. Documentation by telemetry monitoring in such cases may be unrevealing since no abnormalities may be seen over an extended period of time. This could be what is happening for this patient.
In view of the history given for this case, the rhythm strip shown in the Figure is worrisome. Baseline artifact is present, accounting for undulation in the baseline that distorts ST segments and alters P wave morphology. Nevertheless, it seems clear that the underlying rhythm is sinus, as evidenced by regular occurrence of narrow QRS complexes at a rate of 80/minute for the last 6 beats on the tracing. Each of these beats is preceded by an upright P wave, albeit the artifact slightly changes P wave appearance. The QRS complex looks very different for the first 7 beats on the tracing. Although the rS complex for these 7 beats does not appear to be widened, one cannot be sure where the QRS begins and ends from this single monitoring lead. The rhythm is fairly regular at a rate of about 150/minute, and no definite atrial activity is seen. This rhythm has to be assumed to be VT (ventricular tachycardia) until proven otherwise. Unfortunately, the beginning of the run of abnormal beats is cut off, such that one has no idea of the duration of the episode. Further evaluation of the tachycardia (ie, thyroid function studies, serum electrolytes, oxygenation status, history of potentially causative drugs, etc) is warranted. If no obvious precipitating cause is found however, the occurrence of the arrhythmia seen here in a patient with a history of "falling out" may warrant electrophysiologic study with consideration of an ICD (implantable cardioverter-defibrillator).
Dr. Grauer, Professor, Assistant Director, Family Practice Residency Program, University of Florida, is Associate Editor of Internal Medicine Alert.
The rhythm in the Figure was obtained from a 70-year-old woman who was admitted to the hospital with a history of falling out on several occasions during the week prior to admission. Your thoughts on the case?
