Diagnosis and Management of Pulmonary Embolism in the ICU

By Trushil Shah, MD

Assistant Professor of Medicine, University of Texas Southwestern, Dallas

---

Venous thromboembolism is the third most frequent acute cardiovascular syndrome and leads to approximately 300,000 deaths per year in the United States.¹ A significant proportion of these patients (34%) die from sudden cardiac arrest or within a few hours of onset before appropriate treatment can be initiated.¹ Furthermore, among those who died of acute pulmonary embolism (PE), 59% were diagnosed after death by autopsy.¹ Prompt diagnosis and management of PE in the emergency room and intensive care unit (ICU), therefore, may affect the course of these patients.

DEATH SPIRAL IN PULMONARY EMBOLISM

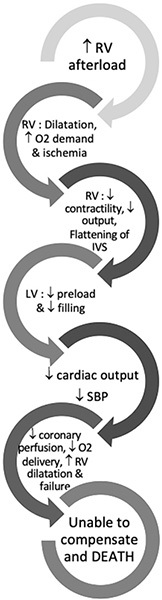

The anatomic obstruction caused by a large amount of clot in the pulmonary vasculature is the main reason for a sudden elevation in pulmonary vascular resistance (PVR) and obstructive shock resulting from acute right ventricular (RV) failure. However, other mechanisms, such as hypoxic vasoconstriction, neurohumoral activation, and RV ischemia, contribute to further failure of the RV.¹ The series of events that takes place after a PE that leads to progressive RV failure is called the death spiral. (See Figure 1.)

DIAGNOSIS

Clinical presentation of acute PE is nonspecific and requires a high index of suspicion. Presentations can vary from cardiac arrest in the field to incidental diagnosis without symptoms. Hemodynamic instability and syncope are rare presentations but very important to recognize and treat because they carry very high mortality.¹ Typical presenting symptoms are sudden onset dyspnea, chest pain, tachycardia, and hypoxemia. Leg swelling and concomitant deep vein thrombosis (DVT) often are present. Clinical pretest probability prediction rules, such as Wells or Geneva prediction scores, should be used. Computed tomography (CT) pulmonary angiography is the test of choice if the patient is stable enough to travel to the CT scanner and does not have any other contraindications. However, in critically ill patients, especially those in refractory shock or cardiac arrest, it may not be safe to wait for a CT scan. In such cases, bedside echocardiography with signs of overt RV failure in a high probability patient is adequate to make the diagnosis and initiate treatment.¹

MANAGEMENT IN THE ICU

Most patients with PE who need ICU admission generally are high risk (e.g., hemodynamically unstable) or intermediate risk. Pulmonary Embolism Response Teams (PERTs) help expedite decisions and treatment for these patients and are beneficial in providing prompt clinical decision making in real time.² Some studies also have shown that the presence of a PERT may reduce mortality in PE patients.³

High-Risk PE

High-risk PE refers to hemodynamically unstable patients who are in obstructive shock secondary to PE. Obstructive shock in PE carries a poor prognosis, with mortality rates approaching 30%.⁴ These patients present in a spectrum of hypotension, shock, or overt cardiac arrest. In patients with high clinical probability of PE and refractory shock or cardiac arrest, immediate diagnosis with a bedside echocardiogram should be established and systemic thrombolysis (ST) should be initiated. Emergent venoarterial extracorporeal membrane oxygenation (VA-ECMO) should be considered as a rescue intervention for these patients with refractory shock/cardiac arrest.¹ For patients who fail systemic thrombolysis or have contraindications to ST, surgical embolectomy after stabilization with VA-ECMO should be considered. In some select patients, catheter embolectomy after VA-ECMO support can be considered as well. If neither surgical nor catheter-directed embolectomies can be performed, many patients with high-risk PE who are supported with VA-ECMO can recover with anticoagulation alone.⁵

For high-risk PE patients who need inotropic support, systemic thrombolysis also should be considered, and the patients should be watched closely for any deterioration. In patients who are not candidates for ST, surgical or catheter-directed embolectomy should be considered. The anticoagulant of choice in patients receiving systemic thrombolysis is unfractionated heparin (UFH) because of easy reversibility in case of bleeding events or need for surgical intervention.

Intermediate-Risk PE

Intermediate-risk PE is further divided into intermediate-high risk and intermediate-low risk based on evidence of right heart strain on echocardiogram or CT scan and elevation of cardiac biomarkers (e.g., troponin, N-terminal prohormone of brain natriuretic peptide [NT-pro-BNP] or brain natriuretic peptide [BNP]).¹ Patients with both evidence of RV strain and positive biomarkers are classified as intermediate-high risk, whereas patients with either RV strain or elevated biomarkers are classified as intermediate-low risk. All patients in an intermediate-risk category should be treated with therapeutic anticoagulation. In these patients, low molecular weight heparin (LMWH) is preferred over UFH as initial anticoagulation, since UFH often is associated with significantly higher risk of subtherapeutic anticoagulation levels in the first 48 hours.⁶

Most patients in the intermediate-low risk category can be managed with anticoagulation alone and do not need advanced therapies, such as systemic thrombolysis or catheter-directed interventions. However, these patients will need to be monitored closely for decompensation, in which case advanced therapies should be considered.¹

Management of intermediate-high risk patients is more variable. In this situation, a multidisciplinary PERT team is helpful because of unclear evidence on the use of advanced therapies.

The largest trial of systemic thrombolysis, PEITHO, studied 1,006 intermediate-risk patients and showed that ST led to improvement in the risk of hemodynamic collapse within seven days (1.6% vs. 5%; P = 0.002), but was associated with significantly increased risk of major hemorrhage (6.3% vs. 1.5%; P < 0.001) with no effect on mortality and a 2% incidence of intracranial hemorrhage.⁷ In practice, the risk of intracranial hemorrhage is around 3% to 5% with ST. Therefore, ST should not be used routinely for intermediate-high risk patients.⁸

Another studied application of ST is the use of half-dose ST (50 mg of alteplase).^9,10 In a recent propensity score-matched study of 3,768 patients who received half vs. full-dose ST, patients in the half-dose group had a higher incidence of treatment escalation (53.8% vs. 41.4%; P < 0.01), which was driven largely by secondary fibrinolysis (25.9% vs. 7.3%; P < 0.01) and catheter-directed therapy (14.2% vs. 3.8%; P < 0.01).¹¹ In these patients, rates of major bleeding and intracranial bleeding were similar. In light of these results, routine use of half-dose alteplase also is not recommended.

Catheter-based therapies are increasingly used for intermediate-high risk PE patients. Catheter-based therapies include catheter-directed fibrinolysis, embolectomy, and pharmaco-mechanical therapy. Current literature studying catheter-based therapies lacks data from randomized controlled trials (RCTs) supporting improvement in clinical outcomes. The most studied of these is ultrasound-assisted catheter thrombolysis, which in multiple studies (OPTALYSE-PE, SEATTLE-2, and an RCT by Kucher et al) showed improvement in RV/left ventricle (LV) ratio and a decrease in clot burden.^12-14

Mechanical catheter embolectomy can be helpful in patients with contraindications to fibrinolytic therapy. Currently, three different systems are available: FlowTriever system (Inari Medical), Indigo thrombectomy system (Penumbra), and AngioVac system (Angiodynamics). The FlowTriever and Indigo thrombectomy systems have been studied in single-arm multicenter studies of 106 (FLARE study) and 119 (EXTRACT-PE study) intermediate-risk patients, respectively.^15,16 Both studies showed improvement in RV/LV ratio.^15,16

Current challenges in determining how to optimally use catheter-directed interventions include the lack of RCTs to compare these to anticoagulation alone and the lack of clinically meaningful outcomes in any of the studies noted earlier.⁸ Given these limitations, the decision to use these interventions should be individualized by a multidisciplinary team (i.e., PERT).

It should be noted that, in the case of catheter-based procedures, patients preferably should not be intubated for the procedure and should receive minimal sedation, given the high risk of RV failure. Propofol should not be used for anesthesia induction in high- or intermediate-risk patients because it is associated with higher mortality.¹⁷

CONCLUSION

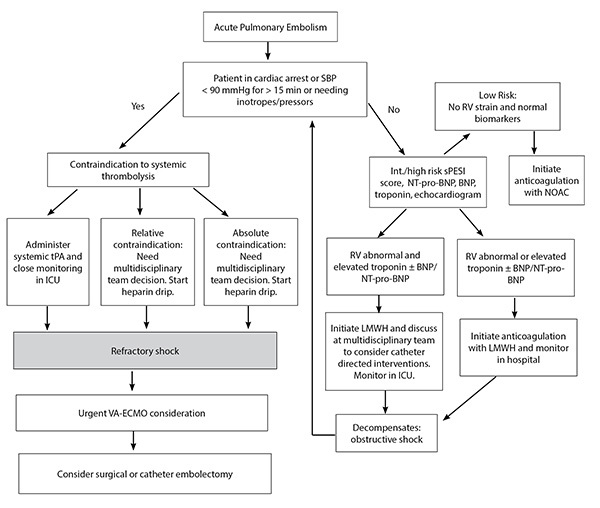

Management of PE in the ICU often is complex (see Figure 2) and should include a multidisciplinary team approach to expedite decision-making in these patients with high mortality.
