ECG Review
Right Answer/Wrong Reason
By Ken Grauer, MD, Professor and Associate Director, Family Practice Residency Program, College of Medicine, University of Florida, Gainesville. Dr. Grauer is the sole proprieter of KG/EKG Press.

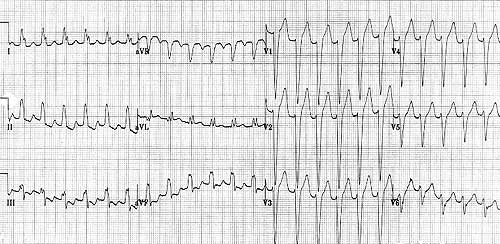

Figure. 12-lead ECG recorded from a 61-year-old woman with a history of hypertension and chest pain.
The 12-lead electrocardiogram (ECG) shown in the Figure was obtained in the emergency department (ED) from a 61-year-old woman with a history of significant hypertension. She was alert, oriented, and not in acute distress at the time this tracing was recorded, although she was markedly hypertensive and experiencing some chest pain. No prior ECG was available. The patient was treated in the ED with several doses of adenosine and eventually converted to sinus rhythm. Your thoughts on the rhythm and the management?
Interpretation: The fact that adenosine was selected and repeated as treatment suggests that the ED physician thought the rhythm was likely supraventricular. Because the patient converted to normal sinus rhythm following this treatment, it would be difficult to argue that with success. That said, assessment of this ECG and the clinical situation should strongly favor ventricular tachycardia (VT) as the diagnosis with a statistical likelihood of between 80-90%. Therefore, in similar situations, a different approach might be preferable.
The rhythm in the Figure is a regular wide complex tachycardia (WCT) at a rate of about 150 beats/minute. A small upright deflection is seen in lead II midway between QRS complexes, however there is no way to know if this upright deflection represents a P wave or a T wave (or fusion of the two). Although this WCT rhythm could represent a supraventricular tachycardia with either preexisting bundle-branch block or aberrant conduction, one should remember that the statistical likelihood that a regular WCT without definite atrial activity will be VT exceeds 80%. In view of this patient's age (older adult), history of severe hypertension (underlying heart disease likely), presenting complaint (i.e., chest pain), and unusual QRS morphology for left bundle- branch block (rS complexes across the precordium), the odds that this rhythm represents VT approach 90-95%. In such cases, specific antiarrhythmic therapy aimed at treating VT (e.g., IV amiodarone) or electrical cardioversion may be preferable to a multiple dose trial of adenosine.
