By Ken Grauer, MD

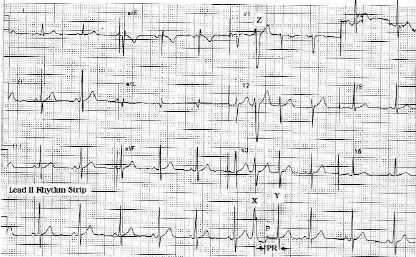

Figure: 12-lead ECG and rhythm strip obtained from an otherwise healthy 53-year-old man.
Clinical Scenario: The 12-lead electrocardiogram and accompanying rhythm strip in the Figure were obtained from an asymptomatic and otherwise healthy 53-year-old man. What two things are unusual about the beat marked X? Did first-degree AV block suddenly develop for the following sinus-conducted beat (beat Y)?
Interpretation: This ECG shows normal sinus rhythm; with the exception of the beat marked X and an isolated Q wave in lead aVL that is probably incidental, this is essentially a normal tracing.
The beat labeled X in the rhythm strip is a premature ventricular contraction (PVC). The first somewhat unusual aspect of this beat is its morphology, as suggested by its appearance in simultaneously recorded leads V1, V2, and V3. The RS pattern of this PVC in lead V1 (beat Z) is consistent with a left bundle-branch block (LBBB) morphology. Far from infallible, PVCs that manifest an LBBB-like morphology (e.g., deep S wave in lead V1; tall monophasic R wave in leads I and V6) are more likely to be of right ventricular origin. This is a less common origin of ventricular ectopy than the left ventricle, which tends to produce PVCs with a predominantly positive deflection in lead V1.
The most interesting aspect of the beat labeled X in the rhythm strip is that this PVC is interpolated. PVCs most often occur in the cardiac cycle at a point that prevents conduction of the next sinus impulse because the ventricles are refractory to normal conduction immediately after the PVC. As a result, PVCs usually are followed by a short pause. The ventricles usually recover in time to conduct the next normally occurring P wave.
On occasion, a PVC may occur at just the right point in the cardiac cycle that allows the ventricles to recover sooner, and therefore, in time to be conducted by the P wave that immediately follows the PVC. Thus, the PVC labeled X is interpolated. Instead of a pause, the next QRS complex (beat Y) occurs nearly on time. Note that although the P wave immediately following the PVC (labeled P) also occurs on time, its PR interval (i.e., the PR interval preceding beat Y) is prolonged compared with all other PR intervals on the rhythm strip. This phenomenon is known as concealed conduction, in which the PVC (beat X) partially conducts back toward the AV node enough to prolong conduction of the next sinus impulse (the P wave labeled P). There is no AV block. The clinical significance of interpolated PVCs is the same as that of any other PVC—which is negligible as an isolated occurrence in an asymptomatic and otherwise healthy adult.
Dr. Grauer, Professor and Associate Director, Family Practice Residency Program, Department of Community Health and Family Medicine, College of Medicine, University of Florida, Gainesville, is on the Editorial Board of Emergency Medicine Alert.
